FYP2 - Critique 1 - Infrared pen material and progress

Infrared LEDs

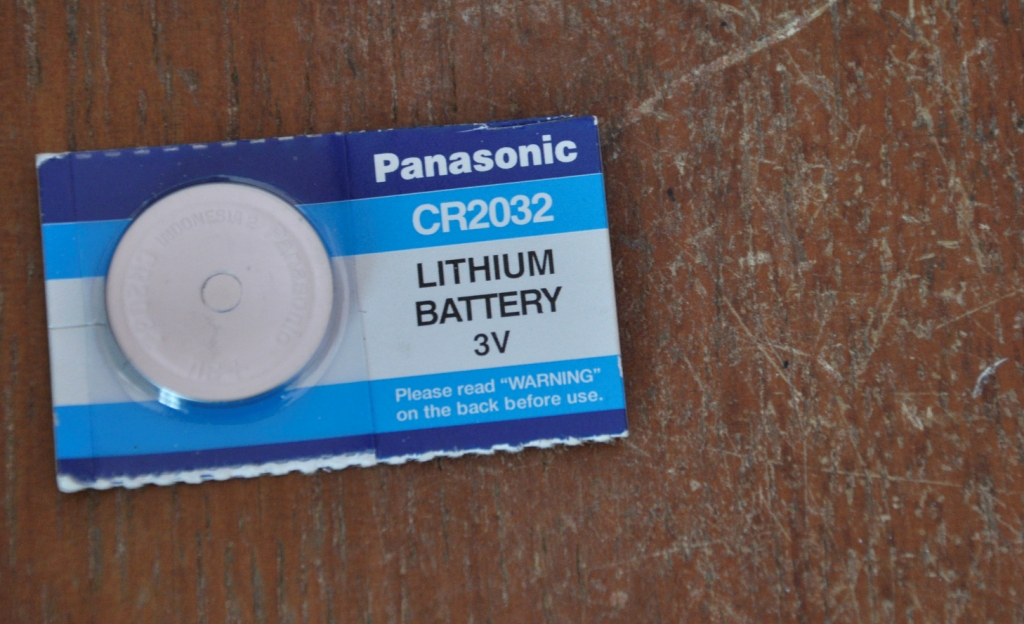

3V Battery

2x 1.5V Battery

 Key chain ( For testing purpose )

 Cut off the key chain



Open it

Take out the LEDs light with casing



Here the side with the button



 When press on it, the LEDs light will on

Here the other side

Take off the LEDs light



The infrared LEDs

Replace the LEDs light to infrared LEDs

Further testing is with wiimote and the software system. The software system is to hack on the wiimote.

When the wiimote is on, start the WiimotePresenter application and the bluetooth of the computer, then long press on the button on the wiimote to connect it with the computer. (This step still under the pending list as Wiimote is not with me all the time and i can't test on it (But all the material is ready.), will try to get it and test it as soon as possible.)
